As a China Air Source Heat Pump Manufacturer, we deliver all-in-one pumps for heating, cooling, and hot water. Our units work efficiently from -30°C to 43°C in both homes and commercial spaces

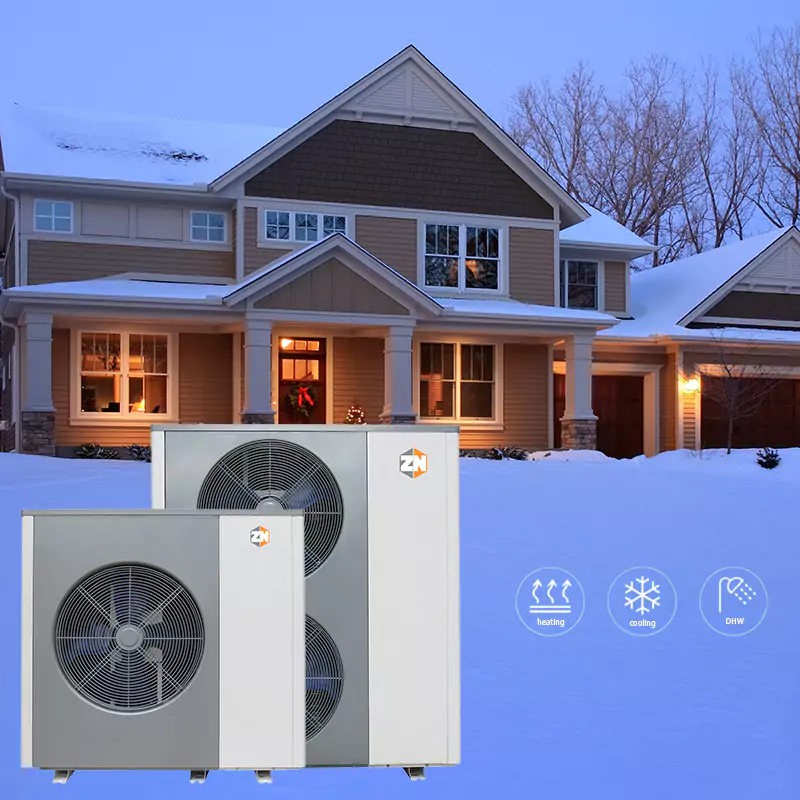

Residential Monobloc EVI Inverter Heat Pump
The Zhongnuan Residential EVI Inverter Heat Pump is a high-performance solution for residential heating, cooling, and domestic hot water, tailored for wholesalers, distributors, installers, and contractors alike.
With a capacity range of 6 kW to 40 kW and R32 refrigerant, this heat pump offers unmatched efficiency and reliability—ready for OEM/ODM customization and seamless market integration.
- Runs reliably at -30°C with advanced EVI and DC inverter technology.
- Achieves A+++ energy rating, saving costs in cold climates.
- Adjusts output via APP or IoT for consistent comfort.
- Features a monobloc design for quick, easy installation
- Supports solar PV and smart systems with Modbus integration.
- Built with Mitsubishi compressors for lasting durability.
Product Parameters
| Model | ZNRJ85/N8-BPEEVI | ZNRJ-110/N8-BPE | ZNRJ-150/SN8-BPEEVI | ZNRJ-180/SN8-BPEEVI | ZNRJ-230/SN8-BPEEVI | |
| Operating Ambient Temp. Range | ℃ | -30℃ ~ 43℃ | ||||
| Power Supply | / | 220V/ 1Ph/ 50Hz | 380V/ 3Ph/ 50Hz | |||
| Heating Capacity | ||||||
| A20/W35°C | KW/COP | 10.6/5.61 | 14.42/5.01 | 21.1/5.42 | 22.8/5.18 | 29.5/4.91 |
| A7/W35°C | KW/COP | 8.59/4.59 | 10.6/4.16 | 14.7/4.44 | 18.8/4.27 | 23.1/4.33 |
| A7/W45°C | KW/COP | 7.91/3.55 | 9.97/3.18 | 13.5/3.29 | 17.8/3.4 | 22.6/3.7 |
| A2/W35°C | KW/COP | 7.65/4.23 | 9.54/3.83 | 13.08/4.07 | 16.92/3.93 | 20.29/3.77 |
| A-12/W41°C | KW/COP | 5.9/2.41 | 6.3/2.33 | 10.2/2.34 | 11.6/2.3 | 14.7/2.5 |
| A-20/W41°C | KW/COP | 5.4/2.11 | 5.61/2.06 | 8.9/2.1 | 10.5/2.11 | 13.7/2.37 |
| Cooling Capacity | ||||||
| A35/W18°C | KW/EER | 9.2/3.41 | 11/3.33 | 13.9/3.31 | 15.6/3.25 | 20.1/3.24 |
| A35/W7°C | KW/EER | 7.2/2.64 | 8.6/2.53 | 9.8/2.6 | 10.5/2.5 | 13.5/2.65 |
| Max.Outlet Water Temp. | ℃ | 60℃ | ||||
| Max.current | A | 18 | 19 | 28 | 14.3 | 18.1 |
| Compressor | / | Mitsubishi | ||||
| Heat Exchanger | / | Copper and Hydrauphilic Aluminum Fin | ||||
| Water Flow | m³/h | ≥0.8 | ≥1.5 | ≥1.8 | ≥2.5 | ≥3.9 |
| Permitted Pressure | Mpa | ≤0.8MPa | ||||
| Water Pipe Connection | / | DN20(3/4'') | ||||
| Refrigerant | / | R32 | ||||
| Electric Shock Proof Grade | / | Class I | ||||
| Protection Grade | / | IPX4 | ||||
| Noise | dB(A) | 56 | 56 | 59 | 59 | 60 |
| Dimension (W*D*H) | mm | 960*820*380 | 960*820*380 | 960*1270*380 | 960*1270*380 | 1030*1340*390 |
| Package Size | mm | 1040*940*502 | 1040*940*502 | 1040*1390*502 | 1040*1390*502 | 1115*1510*510 |
| Net Weight | kg | 68 | 68 | 108 | 108 | 128 |
| Gross Weight | kg | 85 | 85 | 125 | 125 | 145 |

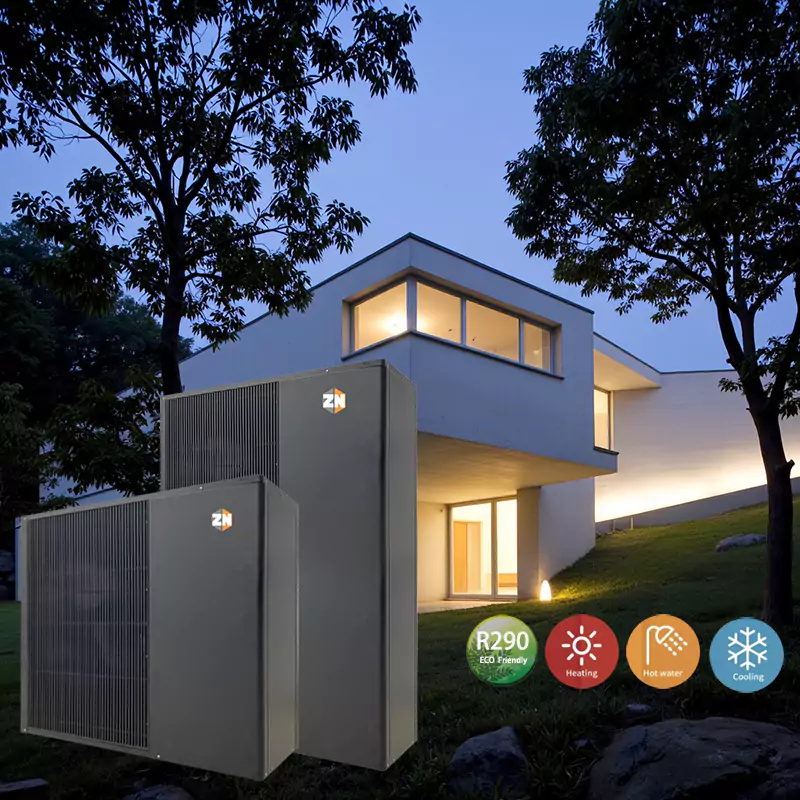

R290 Monobloc Air Source Inverter Heat Pump
The Zhongnuan R290 Heat Pump is a cutting-edge boiler replacement for residential and light commercial applications. Featuring R290 refrigerant and advanced safety features, it’s built for high-output performance and eco-friendly markets.
High-Temp Output
Max. 75°C outlet water—perfect boiler alternative.
Smart Energy Ready
SG Ready for smart grid integration and PV Ready for solar power compatibility, with Wifi control.
Safety First
Explosion-proof design with R290 leakage sensor and bottom ventilation.
Product Parameters
| Model | ZNRJ(P)-80H/N9-BPR | ZNRJ(P)-120H/N9-BPR | ZNRJ(P)-150H/N9-BPR | ZNRJ(P)-180H/SN9-BPR | ZNRJ(P)-160H/SN9-BPR | ZNRJ-220H/SN9-BPR | |
| Operating Ambient Temp. Range | ℃ | -30℃ ~ 43℃ | |||||
| Power supply | / | 220V/ 1Ph/ 50Hz | 220V/ 1Ph/ 50Hz | 220V/ 1Ph/ 50Hz | 380V/ 3Ph/ 50Hz | 380V/ 3Ph/ 50Hz | 380V/ 3Ph/ 50Hz |
| Erp level | / | A+++/A++ | |||||
| Heating Capacity | |||||||
| A7W35°C | kW/COP | 8.00/4.89 | 12.00/4.82 | 15.20/5.10 | 18.00/4.81 | 16.00/4.83 | 22.00/4.83 |
| A-20W35°C | kW/COP | 5.00/2.36 | 7.50/2.32 | 9.50/2.48 | 11.20/2.31 | 10.00/2.39 | 13.80/2.37 |
| Cooling Capacity | |||||||
| A35/W18°C | kW/EER | 8/4.22 | 12/4.31 | 15/4.32 | 18/3.71 | 16/4.12 | 22/4.18 |
| SCOP | LWT at 35℃ | 4.5 | 4.68 | 4.75 | 4.68 | 4.68 | 4.5 |
| LWT at 55℃ | 3.9 | 4.06 | 4.12 | 4.06 | 4.06 | 3.9 | |
| SEER | LWT at 7℃ | 4.47 | 4.65 | 4.72 | 4.65 | 4.65 | 4.47 |
| Max.Outlet Water Temp. | ℃ | 75℃ | |||||
| Water Pressure Drop | kPa | 50 | 50 | 50 | 50 | 50 | 50 |
| Max.current | A | 11.5 | 17.2 | 22.9 | 28.9 | 7.9 | 9.9 |
| Compressor Brand | / | Mitsubishi | |||||
| Air Side Heat Exchanger | / | Finned Tube | |||||
| Water Side Heat Exchanger | / | High Efficiency Tank | |||||
| Fan Mmotor | / | Axial Fan | |||||
| Water Pipe Connection | / | DN25(1”) | |||||
| Refrigerant | / | R290 | |||||
| Electric Shock Proof Grade | / | Class I | |||||
| Protection Grade | / | IPX4 | |||||
| Noise | dB(A) | 45 | 46 | 48 | 50 | 48 | 50 |
| Dimension (L*H*D) | mm | 1115×425×905 | 1115×425×905 | 1115×425×1075 | 1115×425×1075 | 1115×425×1408 | 1115×425×1408 |
| Package Size | mm | 1135×490×1063 | 1135×490×1063 | 1135×490×1233 | 1135×490×1233 | 1135×490×1566 | 1135×490×1566 |
| Net Weight | kg | 68 | 75 | 98 | 108 | 98 | 108 |

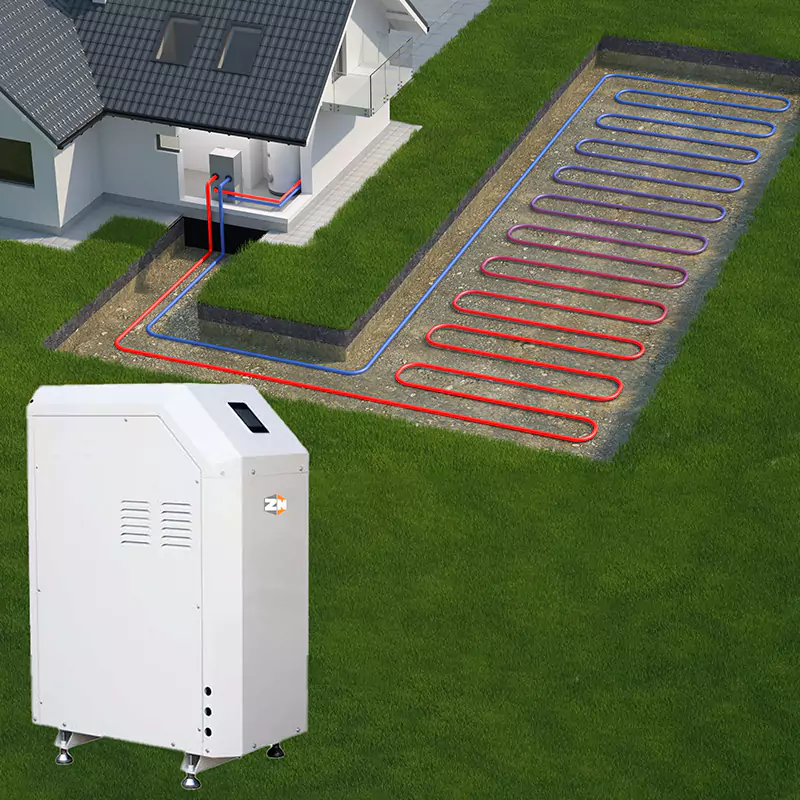

Inverter Geothermal Water Source Heat Pump
Leveraging geothermal, underground, lake, or seawater heat sources for unmatched energy savings. Designed with European standards and R32/R290 refrigerants, it’s perfect for extreme climates and OEM/ODM customization.
Ultra-Efficient Performance
COP 5.6-9.5 and A+++ rating, thrives at -45°C with no capacity loss—most energy-saving water-source heat pump.
Ultra-Efficient Performance
Utilizes geothermal, underground, lake, or seawater, with Fuzzy Logic to optimize solar heating integration.
Smart & Compact
Wifi and Modbus control with elegant, compact design for easy installation and central system compatibility.
Product Parameters
| Model | ZNSYRB-60ECH | ZNSYRB-120ECH | ZNSYRB-180ECH | |
| Power supply | / | 220V/ 1Ph/ 50Hz | ||
| Heating Capacity | ||||
| W10W35°C | kW/COP | 6.8/5.4 | 13.1/5.46 | 17.9/5.42 |
| W10W55°C | kW/COP | 5.76/4.3 | 11.3/3.92 | 14.55/3.9 |
| B0W35°C | kW/COP | 5.37/4.4 | 10.35/4.44 | 13.9/4.34 |
| Cooling Capacity | ||||
| W30/W18°C | kW/EER | 4.1/5.86 | 11.1/5.84 | 15.2/5.74 |
| DHW | kW/COP | 6.52/5.09 | 12.3/4.42 | 15.8/4.38 |
| Max.Outlet Water Temp. | °C | 60℃ | ||
| Compressor | / | Twin Rotary | ||
| Heat exchanger | / | Plate | ||
| Water Flow | m³/h | 0.8 | 2 | 3 |
| Water Pipe Connection | in | 3/4″ | 1″ | 1″ |
| Refrigerant | / | R32 | ||
| Electric Shock Proof Grade | / | Class I | ||
| Protection Grade | / | IPX4 | ||
| Noise | dB(A) | 42 | 46 | 48 |
| Dimension (W*D*H) | mm | 982*606*634 | 982*606*634 | 982*606*634 |
| Net Weight | kg | 52 | 90 | 135 |
Commercial EVI Heating Cooling Heat Pump
The Zhongnuan Commercial EVI Heating Cooling Heat Pump is a versatile, designed for year-round heating and cooling in commercial settings. With a capacity range of 10 kW to 250 kW and compliance with CB/CE and EU standards, it’s built for reliability and flexibility—ideal for large-scale projects.
All-Season Efficiency
EVI technology ensures high efficiency at -30°C, maintaining COP above 2.3 even at -15°C—saves energy year-round.
Flexible Installation
Modular design with graded startup, no machine room needed—install on ground or roof with ease
Dual-Purpose Power
Summer cooling and winter heating in one unit, compatible with most hot water systems.
Product Parameters
| Model | ZNKRS-100E/N2-M(ZK) | ZNKRS-200E/SN2-M(ZK) | ZNKRS-300E/SN2-M(ZK) | ZNKRS-380E/SN2-M(ZK) | ZNKRS-450E/SN2-M(ZK) | ZNKRS-550E/SN2-M(ZK) | ZNKRS-630E/SN2-M(ZK) | |
| Operating Ambient Temp. Range | ℃ | -30℃ ~ 43℃ | ||||||
| Power Supply | 220V/ 1Ph/ 50Hz | 380V/ 3Ph/ 50Hz | 380V/ 3Ph/ 50Hz | 380V/ 3Ph/ 50Hz | 380V/ 3Ph/ 50Hz | 380V/ 3Ph/ 50Hz | 380V/ 3Ph/ 50Hz | |
| Heating Capacity | kW | 10.5/4.12 | 19/4.18 | 30/4.17 | 38/4.13 | 45/4.17 | 55/4.07 | 63/3.94 |
| Running Current | A | 12.46 | 7.83 | 12 | 15.84 | 18.6 | 23.4 | 27.5 |
| Max. Input Power | kW | 3.57 | 6.37 | 10.08 | 12.88 | 16.2 | 20.25 | 24 |
| Max. Running Current | A | 17.45 | 10.97 | 18.36 | 22.18 | 27.89 | 33 | 42 |
| Refrigerant | / | R410a | R410a | R410a | R410a | R410a | R410a | R410a |
| Compressor Brand | / | Toshiba | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic |
| Compressor Type | / | Rotary | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll |
| Compressor Quantity | / | 1 | 1 | 2 | 2 | 2 | 3 | 3 |
| Outlet Water Temp | ºC | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Max. Outlet Water Temp | ºC | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Hot Water Yield | L/h | 226 | 408 | 645 | 817 | 967 | 1182 | 1354 |
| Water Flow | m3/h | 2.3 | 4.1 | 6.4 | 8.2 | 9.7 | 11.8 | 13.5 |
| Condenser | / | Tube in shell | Tube in shell | Tube in shell | Tube in shell | Tube in shell | Tube in shell | Tube in shell |
| Water Pressure Drop | Kpa | 40 | 50 | 55 | 55 | 55 | 55 | 55 |
| Water Connection Tube | mm | DN25 | DN25 | Dn40 | Dn40 | Dn40 | Dn50 | Dn50 |
| Noise | dB(A) | <55 | <57 | <58 | <60 | <61 | <63 | <63 |
| Electric Protection | / | Class I | ||||||
| Mechanical Protection | / | IPX4 | ||||||
| Net Weight | kg | 87 | 119 | 236 | 249 | 268 | 398 | 428 |
| Gross Weight | kg | 103 | 137 | 279 | 294 | 316 | 460 | 490 |
| Dimension | mm | 752x690x765 | 816x690x965 | 1450x702x950 | 1450x730x1064 | 1450x730x1266 | 2150x772x1291 | 2150x772x1291 |
| Packing Dimension | mm | 840x750x900 | 840x750x1100 | 1525x805x1110 | 1525x805x1220 | 1525x805x1420 | 2250x865x1450 | 2250x865x1450 |
Trusted Expertise
Over 15 years in heat pump R&D and manufacturing.
Robust Production
Large-scale facilities with advanced production lines.
Quality Assurance
Rigorous testing ensures top performance and reliability.
Certified Excellence
Meets CE, CB, and EU standards for global markets.
Tailored Solutions
OEM/ODM services for customized heat pump designs.
Ongoing Support
Comprehensive warranty and technical assistance.
Principle of Operation
Our ASHPs operate by transferring heat through a refrigeration cycle, using advanced refrigerants like R32, R290, or R410a. Enhanced with EVI and inverter technology, they ensure high efficiency and consistent output across all conditions.Detailed Process Description
- Air Intake: Ambient air is drawn into the system via a fan, feeding heat to the evaporator.
- Heat Extraction: Refrigerant absorbs heat, turning into gas as it passes through the evaporator.
- Compression: The compressor boosts the gas’s temperature and pressure for efficient heat transfer.
- Heat Release: Hot gas flows to the condenser, releasing heat to air or water systems indoors.
- Cycle Reset: The refrigerant cools and returns to liquid form via the expansion valve, restarting the process.
Key Components
- Evaporator: Captures heat from the air with high-efficiency coils.
- Compressor: Features EVI and inverter tech for enhanced performance.
- Condenser: Transfers heat to indoor systems seamlessly.
- Expansion Valve: Regulates refrigerant flow for optimal efficiency.
- Control System: Adjusts settings like temperature and speed via intuitive panels.
Applications
Zhongnuan heat pumps are engineered to meet a variety of heating, cooling, and hot water needs across multiple sectors. Their adaptability and efficiency make them a trusted solution for diverse environments.- Residential Comfort: Compact units (6-40 kW) provide heating, cooling, and hot water for homes and apartments.
- Commercial Facilities: High-capacity models (up to 250 kW) support offices, hotels, and large buildings with year-round climate control.
- Sustainable Projects: Eco-friendly options integrate with solar and geothermal sources for green energy solutions.
- Industrial Spaces: Robust systems deliver consistent heat and cooling for warehouses and manufacturing plants.
- Hospitality Sector: Quiet, efficient units ensure guest comfort in resorts and restaurants with hot water on demand.
- Agricultural Use: Stable climate control supports greenhouses and farm facilities with energy-saving performance.
Conclusion
Zhongnuan ASHPs are a powerful ally for businesses seeking efficient, reliable, and eco-friendly climate solutions. With cutting-edge technology and broad adaptability, they streamline energy use and elevate comfort across any setting.They can be effective down to temperatures as low as -25°C and typically heat water up to 55°C, with newer models reaching max 75°C
Our team provides site assessments analyzing insulation, distribution systems, and operational requirements to deliver detailed ROI projections based on your facility profile and utility rates.
Commercial systems deliver 30-50% operational savings with typical payback within 3-7 years. Volume pricing and financing options preserve capital, while tax incentives accelerate ROI for multi-location implementations.
Absolutely—models like our R290 Heat Pump reach up to 75°C, compatible with specialist cylinders for efficient hot water supply.
Size varies by building type and climate—6-40 kW for homes, up to 250 kW for commercial spaces. Contact us for a professional sizing consultation.
