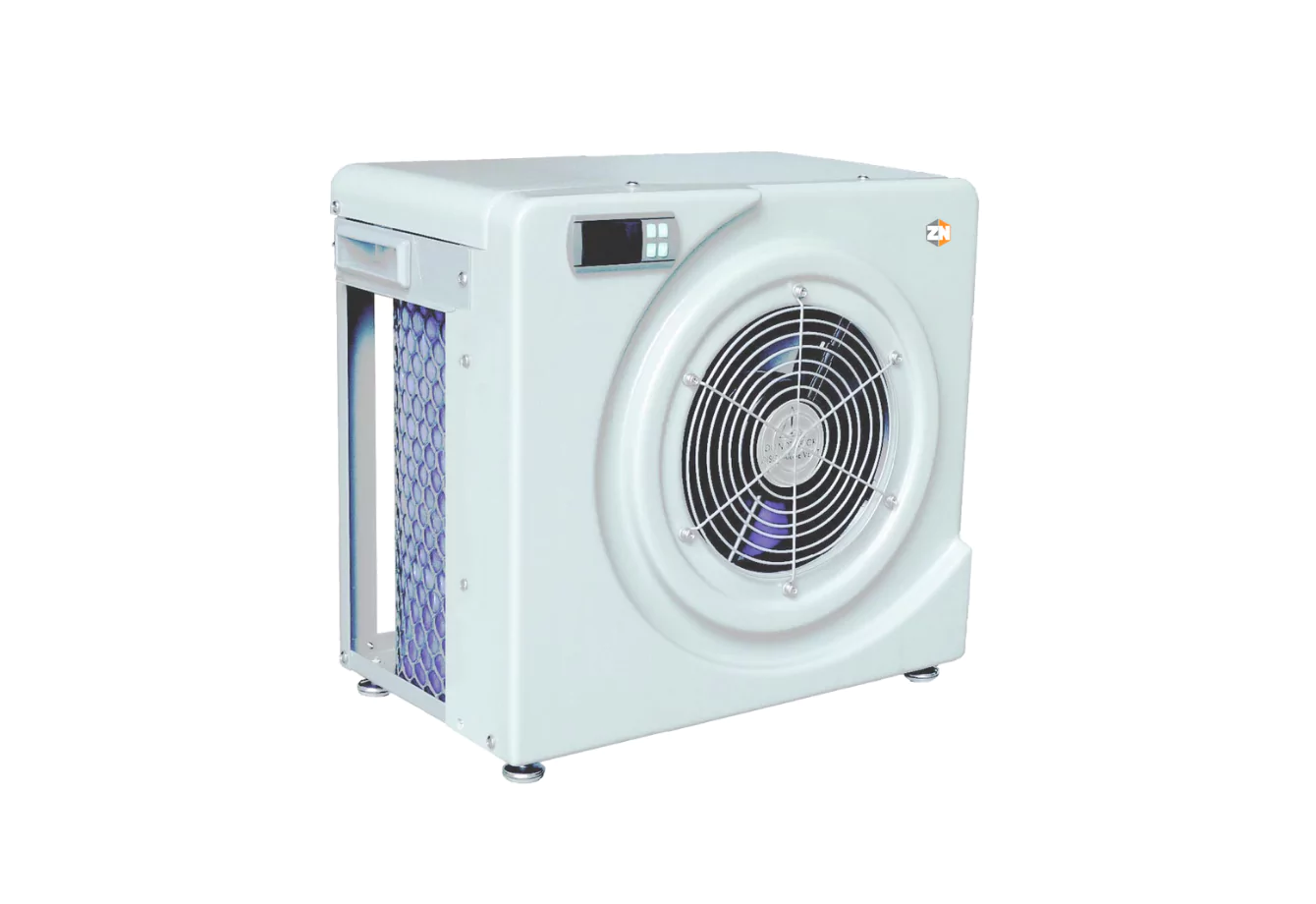

Mini Pool Heat Pump

ZN Mini Pool Heat Pump is a plug-and-play solution designed for smaller pools and spas. It's compact, easy to install, and operates quietly and cost-effectively, making it ideal for mini pools, plunge pools, cocktail pools (spools), swim spas, above-ground pools, and endless pools.

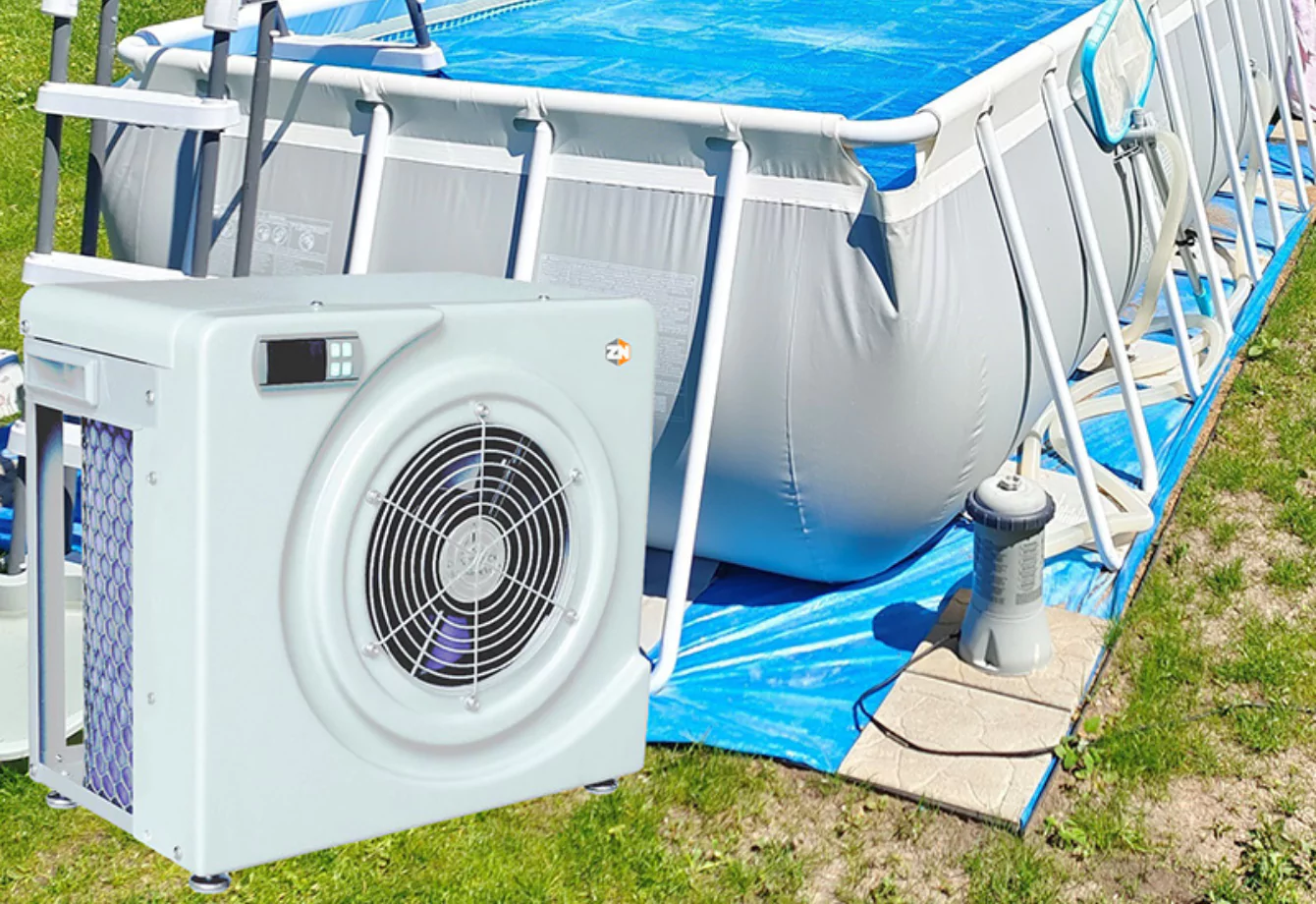

ZN Mini Pool Heat Pump for Above Ground Pools

Heating capacity of 2.85 kW (9725 BTU) and 3.85 kW (13140 BTU)
Heats pool volumes up to 25 m³
Uses eco-friendly R32 refrigerant
Works in 7°C to 43°C ambient temperatures
Durable titanium in PVC heat exchanger
Quiet operation at 53 dB(A)
Easy-to-use WiFi LED controller
Compact and lightweight for easy installation

Standard Mini Pool Heat Pump and Custom Solutions

ZN is a Chinese manufacturer and supplier of pool heat pumps. We partner closely with world-renowned brands like Mitsubishi, Toshiba, and Sanyo, utilizing their high-quality compressors and components to ensure exceptional reliability and longevity.

Beyond our standard product offerings, ZN specializes in ODM and OEM services. We can customize designs to meet most clients’ specific application needs, including heating capacity, design, and specifications, all while offering competitive pricing.

Mini Pool Heat Pump Specifications

Model		ZNRJ-28R/N8-MIE	ZNRJ-40R/N8-MIE
Operating Ambient Temp. Range	℃	7°C~43°C	7°C~43°C
Outlet Water Temp.	℃	15°C~40°C	15°C~40°C
Power Supply	/	220V/1Ph/50Hz	220V/1Ph/50Hz
Testing Condition: Ambient air temperature 28℃(DB)/25.3℃(WB), inlet water temperature 26℃
Heating Capacity	kW/COP	2.85/5.48	3.85/5.7
Max.current	A	3.6	4.5
Heat Exchanger	/	Titanium in PVC	Titanium in PVC
Water Flow	m³/h	1.5	2.5
Water Pipe Connection	inch	1"	1"
Refrigerant	/	R32	R32
Controller	/	LED	LED
Noise	dB(A)	51	53
Electric Protection	/	Class I	Class I
Mechanical Protection	/	IPX4	IPX4
Dimension (WDH)	mm	411250376	411250376
Package Size	mm	475290445	475290445
Net Weight	kg	25	28
Gross Weight	kg	28	31

Notice: The above data is for reference only, The specs data is subject to actual product
