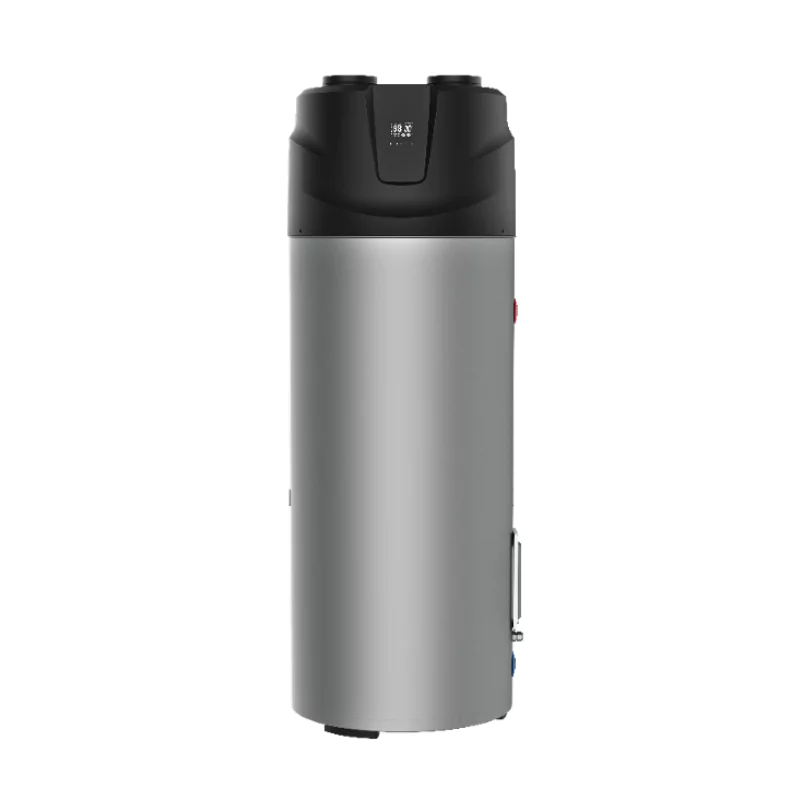

Domestic Hot Water Heat Pump for EU market
ZN high-efficiency R290 all-in-one heat pump water heater, earning an A+ energy rating, CE Certified.
- COP up to 3.9 with A+ energy efficiency rating
- Available in 200L, 250L, and 300L capacities
- Uses eco-friendly R290 refrigerant (450g)
- Operates reliably from -7°C to 47°C
- Provides 1500W heating power and 35L/h hot water output
- Runs quietly at 40dB(A), ideal for home environments
- Heats water up to 75°C for versatile applications
- Porcelain enamel tanks approved by CE, WATER MARK, ETL, WRAS, EN12977-3

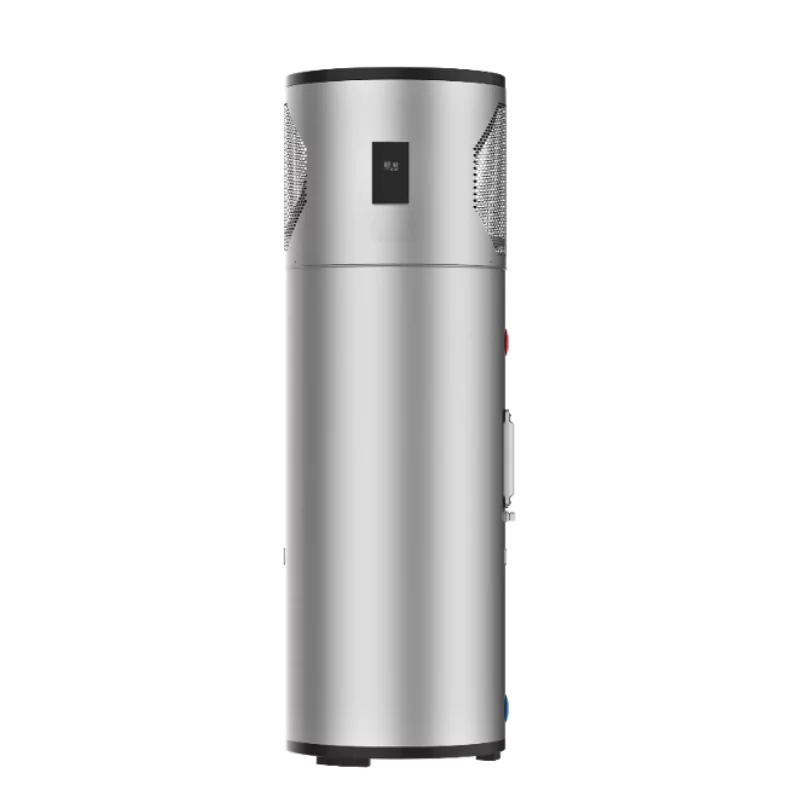

Domestic Hot Water Heat Pump for Australian market
The ZN high-efficiency R290 all-in-one heat pump water heater is more than just a water heater; it’s an energy-saving and innovative hot water solution, designed specifically for the Australian market.
- High COP up to 5.4, cutting utility costs
- Available in 270L, 300L, and 330L capacities
- Uses eco-friendly R290 refrigerant (450g)
- Operates reliably from -7°C to 47°C
- Delivers 2650W heating power and 60L/h hot water output
- Runs quietly at 48dB(A) for minimal noise
- Heats water up to 75°C for versatile applications
- Qualifies for 36 STC, VEEC1D (10, 11), and VEEC3C (9) energy credits
Heat Pump Water Heater Manufacturer in China
Our enamel coating is a superior form of anti-corrosion protection, forming an impenetrable, continuous layer that completely isolates the metal from water.This means our enamelled tanks offer exceptional resistance against all types of water, even the toughest hard water.
We achieve this by applying the enamel material to the metal sheet and firing it in a furnace at over 800°C, creating a vitreous, highly resistant coating.
What sets ZN apart? Our water tanks feature two layers of enamel. This double-layer approach ensures the absolute highest level of anti-corrosion protection and a longer lifespan that goes well beyond industry standards.
To ensure the unwavering quality of every product we manufacture, we’ve implemented a rigorous ISO 9001 quality management system.
Beyond that, our enamelled tanks proudly carry approvals from a wide range of international standards, including CE, WaterMark, ETL, WRAS, and EN12977-3.
With ZN, you’re not just getting a water heater; you’re getting a commitment to excellence and lasting performance.

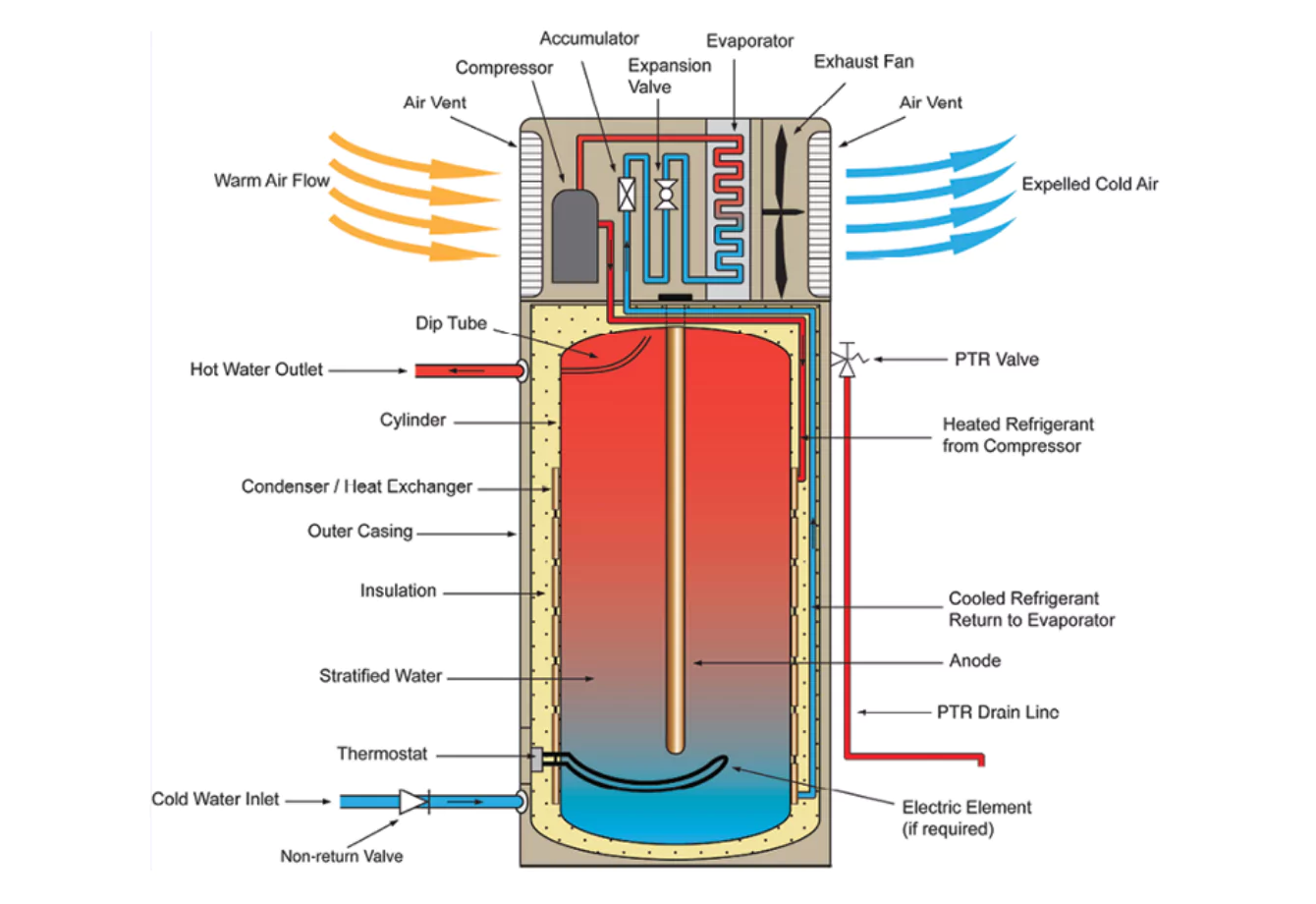

How Domestic Hot Water Heat Pump Works
The system begins by drawing in ambient air through a fan. This air’s energy is then transferred to a refrigerant in the evaporator, causing the refrigerant to change from a liquid to a gas.
Next, this gas is compressed, which significantly increases its temperature. In the condenser, this superheated gas then transfers its accumulated heat directly to your water tank, warming the water.
As it cools down, the refrigerant transforms back into a liquid. Finally, an expansion valve reduces the pressure of this liquid, preparing it to restart the cycle.
Our system is designed for maximum efficiency. The electric back-up heating only activates when necessary, ensuring you have hot water even in extreme conditions, while still prioritizing energy savings.
Quality You Can Trust

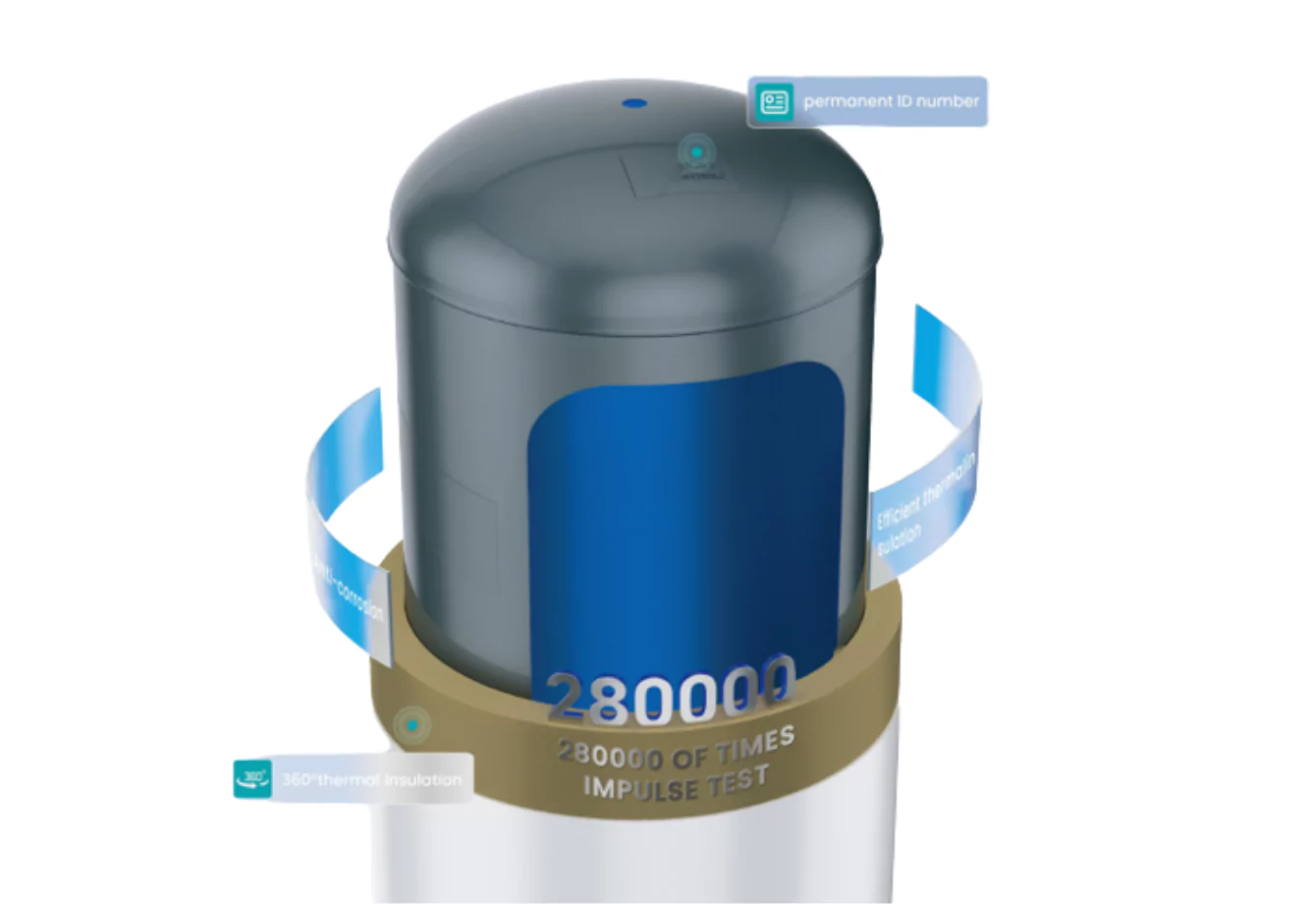

Our tanks are engineered for exceptional durability, boasting high pressure and fatigue resistance that allows them to pass a remarkable 280,000 pulse test.
This ensures they’re built to last, providing reliable performance year after year.
| Modello | ZNKRS35A-200VD | ZNKRS35A-250VD | ZNKRS35A-300VD |
| Product Type | Fixed Frequency | Fixed Frequency | Fixed Frequency |
| Rated Capacity | 200L | 250L | 300L |
| Product Color | Silver | Silver | Silver |
| Energy Efficiency Level | Level 2 (A+) | Level 2 (A+) | Level 2 (A+) |
| Top Cover Shell | Injection Molded | Injection Molded | Injection Molded |
| Rated Voltage | 220V~ | 220V~ | 220V~ |
| Rated Frequency | 50Hz | 50Hz | 50Hz |
| Capacità di riscaldamento | 1500W | 1500W | 1500W |
| Heat Pump Rated Power | 385W | 385W | 385W |
| Energy Efficiency Ratio | 3.9 | 3.9 | 3.9 |
| Heating Rate | 35L/h | 35L/h | 35L/h |
| Rated Maximum Water Temperature | 75℃ | 75℃ | 75℃ |
| Potenza massima in ingresso | 3100W | 3100W | 3100W |
| Electric Heater Rated Power | 2500W | 2500W | 2500W |
| Rated Water Pressure | 0.8MPa | 0.8MPa | 0.8MPa |
| Rumore | 40dB(A) | 40dB(A) | 40dB(A) |
| Peso | 95kg | 110kg | 129kg |
| Refrigerante | R290/150g | R290/150g | R290/150g |
| Operating Ambient Temperature | -7~45℃ | -7~45℃ | -7~45℃ |
| Suction/Exhaust Maximum Working Pressure | 1.0/3.0MPa | 1.0/3.0MPa | 1.0/3.0MPa |
| Low/High Pressure Side Allowable Working Pressure | 1.0/3.0MPa | 1.0/3.0MPa | 1.0/3.0MPa |
| Heat Exchanger Maximum Working Pressure | 3.0MPa | 3.0MPa | 3.0MPa |
| Dimensioni del prodotto | Φ650×1440mm | Φ650×1650mm | Φ650×1850mm |
| Packaging Box Dimensions | 705×705×1555mm | 705×705×1765mm | 705×705×1965mm |
| Overall Dimensions (Including Pallet) | 710×710×1685mm | 710×710×1895mm | 710×710×2095mm |
